Equipment makers. One kit covers the full repair job. No missing pieces. No compatibility guesswork.
The three products serve completely different mechanical purposes. Misunderstanding their limits leads to premature engine failure.
Gasket Cement (Hardening Sealants)
Gasket cement is a liquid chemical that dries and hardens like glue. It is excellent for static, low-vibration environments, such as industrial stove pipes. However, a Cummins diesel engine produces intense, constant vibration. When applied to an engine block, rigid gasket cement easily cracks and shatters, creating immediate microscopic leak paths for pressurized fluids.
High Temp Silicone (RTV Sealant)

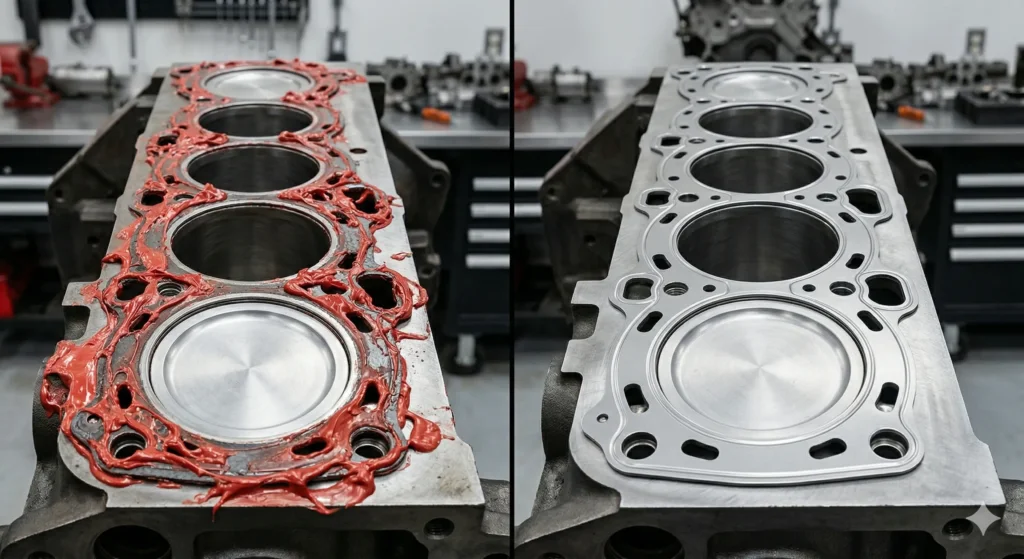

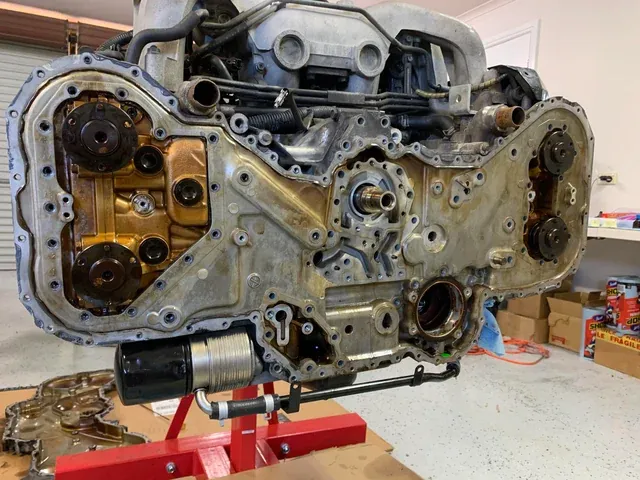

High temp silicone is a flexible, room-temperature vulcanizing (RTV) sealant that can resist heat up to 650°F (343°C) in short bursts. While popular for quick fixes, it has a fatal flaw: extrusion. When mechanics torque down engine components, the flexible silicone squeezes out. If this excess material breaks off and migrates into the engine’s internal oil passages, it acts like a blood clot, starving the bearings of oil and seizing the engine within hours.
85%
of premature bearing failures linked to sealing issues are caused by liquid silicone (RTV) extruding into and blocking internal oil galleries. — Industrial Diesel Rebuilding Guidelines
Pre-Formed High Temp Gaskets (The Ultimate Solution)

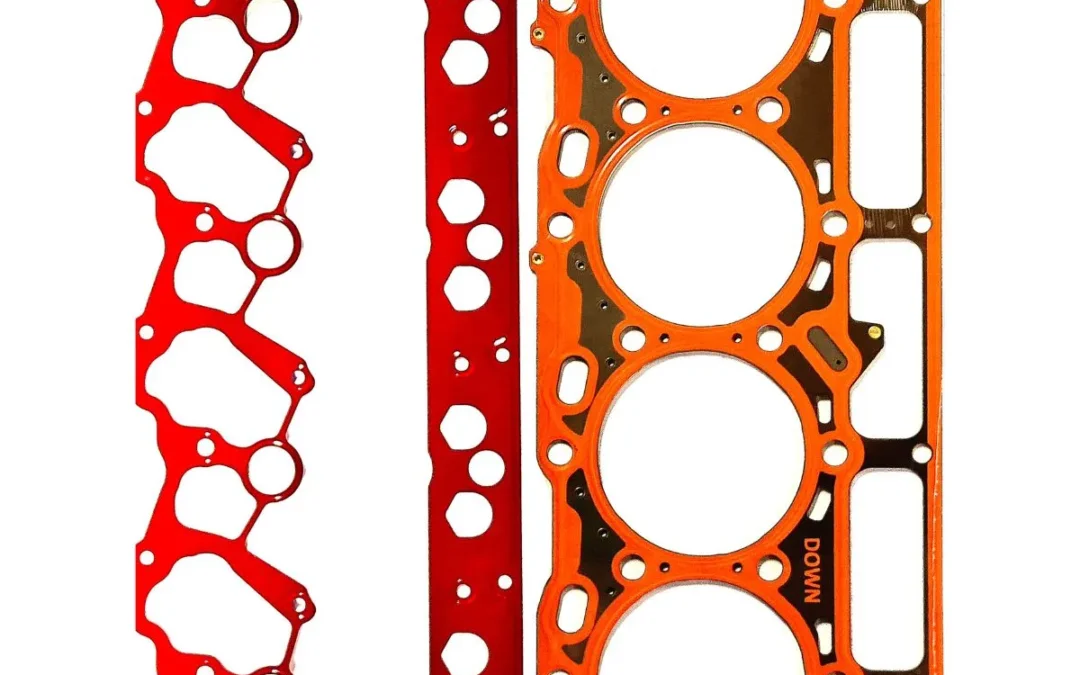

This is the best high temp gasket replacement for Cummins diesel repair kits. Engineered from Multi-Layer Steel (MLS), reinforced graphite, or FKM (Fluoroelastomer) elastomers, solid high temp gaskets provide an exact, crush-resistant barrier. They require no curing time, do not block fluid galleries, and handle continuous heat above 500°F without losing their structural integrity.
Comparative Data: Why Liquid Sealants Fail Under Diesel Compression
To understand why pre-formed high temp gaskets are mandatory, we must look at the exact engineering metrics of a modern heavy-duty diesel engine. A late-model Cummins ISX15 or QSX15 generates peak cylinder pressures exceeding 3,200 PSI (220 bar) during the combustion stroke.
- Tensile Strength Degradation: Laboratory stress tests reveal that standard RTV high temp silicone loses up to 60% of its tensile strength when continuously exposed to modern synthetic diesel engine oils (like CK-4 specification) at temperatures of 300°F (150°C) for over 100 hours. In contrast, the FKM elastomers used in Volgen Power pre-formed gaskets retain 98% of their radial sealing force under the exact same chemical soak conditions.
- Thermal Recovery & Block Distortion: When a heavy-duty cast-iron block operates under full load, the metal surface actually warps and distorts by approximately 0.10mm to 0.15mm. Liquid silicone squeezes out during bolt torquing, leaving a microscopic film of less than 0.05mm, which cannot absorb this thermal distortion. Volgen Power’s Multi-Layer Steel (MLS) gaskets feature engineered crush zones (embossed beads) that provide a dynamic recovery rate of 0.08mm to 0.12mm, acting like a high-tension spring that expands and contracts with the engine block to maintain an unbreakable seal.
⚠️ Safety Warning
Never use liquid RTV silicone as a primary seal on high-pressure diesel engine components such as cylinder heads or oil coolers. Excess silicone extrudes under torque and migrates into internal oil galleries. This blockage causes immediate bearing starvation and catastrophic engine seizure.
Comprehensive High-Temp Gasket Kit Compatibility
As a direct manufacturer, Volgen Power produces complete upper and lower engine overhaul kits that mirror exact OEM specifications. Our kits cover the full range of heavy-duty applications, eliminating the guesswork on compatibility for engine rebuilding facilities.
Below is our detailed high temp gasket kit compatibility for Cummins 4BT, 6BT, ISX15, and the wider industrial family:
1. Mid-Range Series (4BT / 6BT / 6CT / QSB5.9)
Built for consistent reliability in commercial transport and industrial power units.
| Engine Model | Upper Gasket Kit OEM | Lower Gasket Kit OEM | Core Applications |
| 4BT (3.9L) | 4089648 | 3802375 | Light trucks, backup generators |
| 6BT (5.9L) | 3804879 | 3802376 | Medium transit buses, marine auxiliaries |
| 6CT (8.3L) | 4025271 | 3800558 | Construction machines, agricultural equipment |
| QSB 5.9 | 4090035 | 3800487 | Industrial power units, excavators |
2. Commercial Transport Series (ISBE / ISF / ISZ)
Engineered to withstand severe thermal cycling in stop-and-go operations.
| Engine Model | Upper Gasket Kit OEM | Lower Gasket Kit OEM | Core Applications |
| ISBE 4 / 6 | 4025107 / 4025138 | 4025108 / 4955357 | City buses, Intercity coaches |
| ISF 2.8 | 4352430 | 5257187 | Light commercial vans |
| ISZ 14 | 4376141 | 4376140 | Heavy-duty regional trucks |
3. Heavy-Duty Highway & Industrial (ISM / ISX15 / QSX15)
Manufactured with heavy-gauge MLS to survive continuous maximum-load combustion pressures.
| Engine Model | Upper Gasket Kit OEM | Lower Gasket Kit OEM | Core Applications |
| ISM 11 | 4089478 | 4089998 | Heavy haul trucks |
| ISX 15 | 4376220 | 4376221 | Class 8 long-distance transport |
| QSX 15 | 4955594 | 4955591 | Mining equipment, continuous power |
4. High-Horsepower (HHP) Series (QSK / KTA / QSV)
Extreme temperature tolerance for the world’s most demanding continuous-duty environments.
| Engine Model | Upper Gasket Kit OEM | Lower Gasket Kit OEM | Core Applications |
| KTA 19 | 3800728 | 4089391 | Prime continuous generators |
| QSK 38 / 50 | 3800730 / 3800731 | 5648382 / 4955824 | Heavy construction, 300-ton haulers |
| QSK 78 | 4376325 | 4376326 | Mega-scale power generation |
Related Products
The Volgen Power Factory Advantage

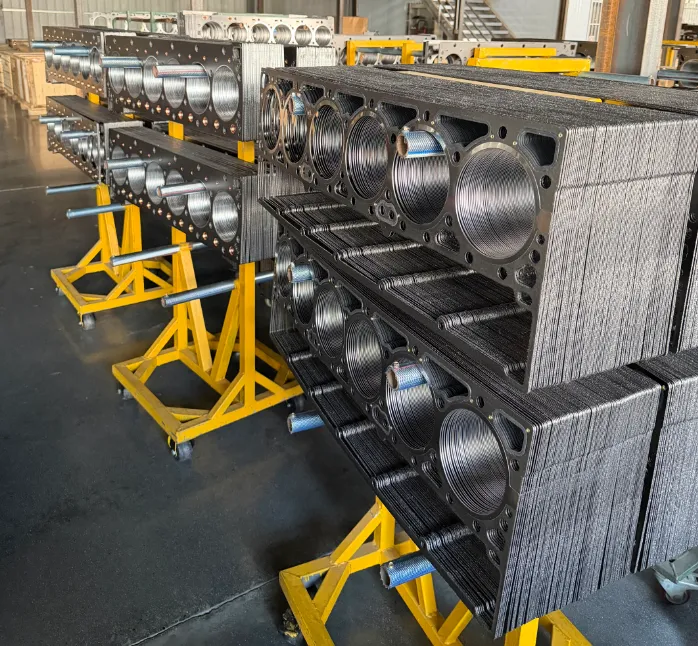

We are not parts brokers; we are mechanical engineering specialists. Volgen Power manufactures high-temp gasket kits from raw materials to final packaging. Our CNC-stamped gaskets achieve a dimensional tolerance of 0.01 mm, guaranteeing that every water jacket passage and bolt hole aligns perfectly with the engine block.
ISO-Certified Testing Metrics for Volgen Power Gaskets
As an OEM-equivalent manufacturer, we do not rely on visual inspections; we rely on rigorous metallurgical and chemical testing. Before any high temp gasket kit leaves our Hubei facility for global export, the materials must pass strict quality assurance protocols that liquid sealants simply cannot endure:
- Thermal Shock Resistance: Our FKM and MLS gasket composites are subjected to 1,000 continuous thermal shock cycles, transitioning rapidly from -40°C to +250°C (-40°F to 482°F). This ensures zero embrittlement or micro-cracking in extreme operational climates.
- Pressure Decay Leak Testing: We simulate operating pressures on CNC-machined test blocks. Our sealing layers are pressurized to 150 PSI for coolant/oil channels and 3,500 PSI for combustion fire rings. The allowable pressure decay is 0.00 cc/min, guaranteeing absolute fluid separation.
- Surface Finish (Ra) Adaptability: A major challenge in engine rebuilding is mating a new gasket to a machined cylinder head. Our high temp FKM micro-coatings are engineered to seal perfectly against both cast iron and aluminum surface finishes ranging from 30 to 60 Ra (micro-inches), filling microscopic machining grooves that liquid cement would simply fracture across.
- Chemical Volume Swell Test: Gaskets are submerged in a 50/50 mix of OAT (Organic Acid Technology) coolant and heavily sooted diesel oil for 500 hours. Our materials demonstrate a maximum volume swell of less than 2%, ensuring the internal passages are never restricted by expanding rubber.
A major well-servicing company operating continuous-duty Cummins QSK50 engines on hydraulic fracking rigs was suffering from severe top-end leaks. Their mechanics had been using high temp RTV silicone alongside basic aftermarket gaskets to seal the heavily vibrating valve covers and exhaust manifolds. Under the 24/7 intense vibration at the drilling site, the silicone bonds shattered, causing oil to spray directly onto hot exhaust components.
The engineering team transitioned their rebuild protocol entirely to Volgen Power Pre-Formed High Temp Kits. Our proprietary FKM-coated metal gaskets absorbed the extreme operational vibration without losing clamping force. The result was zero fluid migration, eliminating the fire hazards and keeping the pumping units online through the harshest drilling schedules.
Expert Insight from the Factory Floor
“Liquid sealants like gasket cement or silicone belong on static industrial pipes, not inside high-compression diesel engines. In our testing laboratory, we see silicone extrude and fail under the heat and torque specifications of modern diesel operation. Pre-formed MLS and FKM gasket kits provide consistent torque retention and block leaks from day one. By manufacturing these kits in-house, we ensure that engine rebuilders receive components that match OEM dimensions exactly, with every necessary seal included in one box.”
— Director of Sealing Technology, Volgen Power
Start Rebuilding with Factory-Direct Precision
For professional diesel repair facilities and engine remanufacturing centers, the quality of your gasket determines the lifespan of your rebuild. Relying on liquid sealants is a mechanical risk that modern engines cannot afford.
Choose Volgen Power high temp gasket kits to ensure your engines run longer, cleaner, and with fewer failures. Contact our factory engineers today to match the exact high temp gasket kit to your Cummins engine model and serial number.
FAQ
Is gasket cement the same as high temp silicone?
No. Gasket cement hardens completely into a rigid state and works best for static, low-vibration joints. High temp silicone (RTV) stays flexible but is prone to squeezing out of the joint under pressure. Neither product is an acceptable replacement for a proper, solid, high-temp gasket in Cummins applications.
Can I use high temp silicone instead of a high temp gasket on a Cummins engine?
It is strongly discouraged by engine manufacturers. Silicone can easily migrate and block critical internal oil ways, leading to immediate engine failure. High temp gasket kits provide the exact structural thickness and material strength needed to withstand heavy-duty diesel pressures.
Which Cummins models does the Volgen Power high temp gasket kit fit?
Our factory produces full kits covering the entire Cummins spectrum, including 4BT, 6BT, 6CT, QSB, ISBE, ISX15, QSK, KTA, and QSV series. Check the compatibility table above or provide us with your engine serial number (ESN) for an exact match.
How long do high temp gasket kits last in heavy-duty use?
When installed with the correct torque sequence, high-quality pre-formed gaskets can last through the entire lifecycle of the engine overhaul (often exceeding 30,000 to 50,000 hours). They resist heat, vibration, and chemical breakdown far better than any liquid sealant.
